Plastic Machinery

Name

Style

 Main parameters

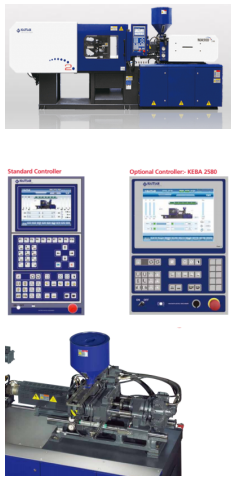

Injection

Molding

machine

HT-MA600

Screw Diameter:24/28 mm

Shot size:50/68 cm3

Shot Weight:46/62 g

Injection Rate:51/70 g/s

Injection Pressure:243/179 Mpa

HT-MA900

Screw Diameter:32/36/40 mm

Shot size:121/153/188 cm3

Shot Weight:110/139/171 g

Injection Rate:77/98/121 g/s

Injection Pressure:219/173/140 Mpa

HT-MA1200

Screw Diameter:36/40/45 mm

Shot size:173/214/270 cm3

Shot Weight:157/195/246 g

Injection Rate:95/117/148 g/s

Injection Pressure:210/171/135 Mpa

Extrusion Blow

Molding

 Machine

ZY-80

Screw Diameter: 60/70 mm

Extrusion Capacity:85-130kg/h

Locking Force: MAX 80KN

Mold Dimension: MAX 490x400mm

ZY-120

Screw Diameter: 60/70/80 mm

Extrusion Capacity:85-130-160 kg/h

Locking Force: MAX 120KN

Mold Dimension: MAX 550x400mm

ZY-200

Screw Diameter: 80/90 mm

Extrusion Capacity:160-210kg/h

Locking Force: MAX 200KN

Mold Dimension: MAX 750x400mm

Injection Blow Molding Machine

MSZ-30

Screw Diameter: 40/45 mm

Injection Weight:190/241g

Injection Locking Force: MAX 292KN

Blowing Locking Force:MAX 46.7KN

Mold Dimension: MAX 400x270mm

MSZ-50

Screw Diameter: 45/50 mm

Injection Weight:241/298g

Injection Locking Force: MAX 500KN

Blowing Locking Force:MAX 89KN

Mold Dimension: MAX 560x390mm

MSZ-60

Screw Diameter: 50/55 mm

Injection Weight:298/360g

Injection Locking Force: MAX 650KN

Blowing Locking Force:MAX 89KN

Mold Dimension: MAX740x390mm

Contact us for more high quality machine.
